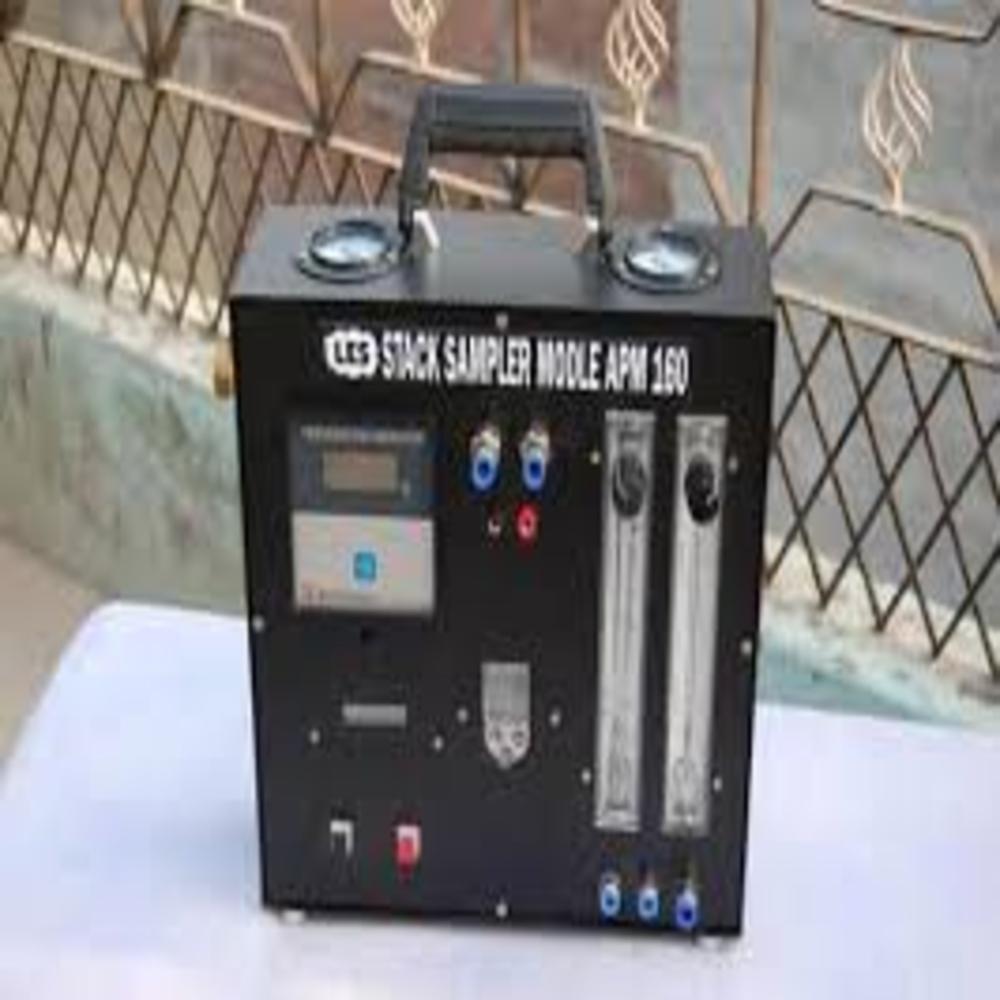

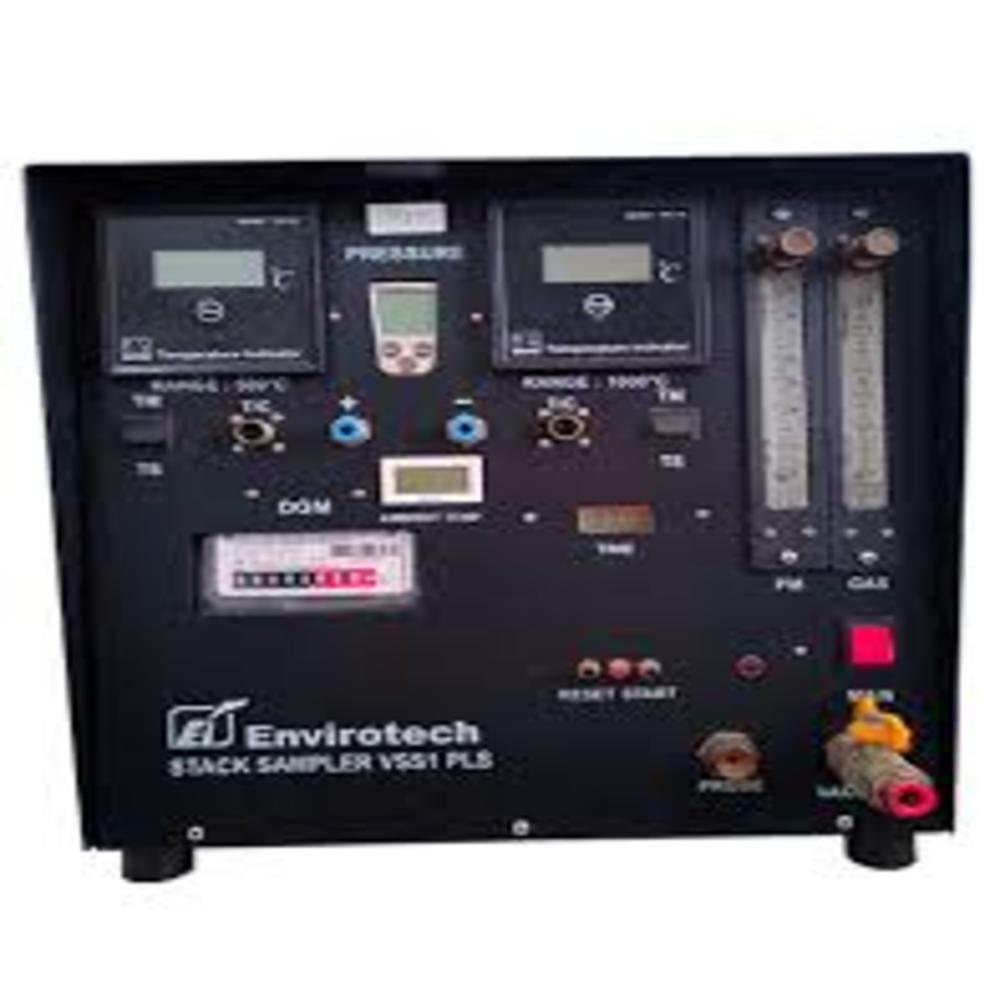

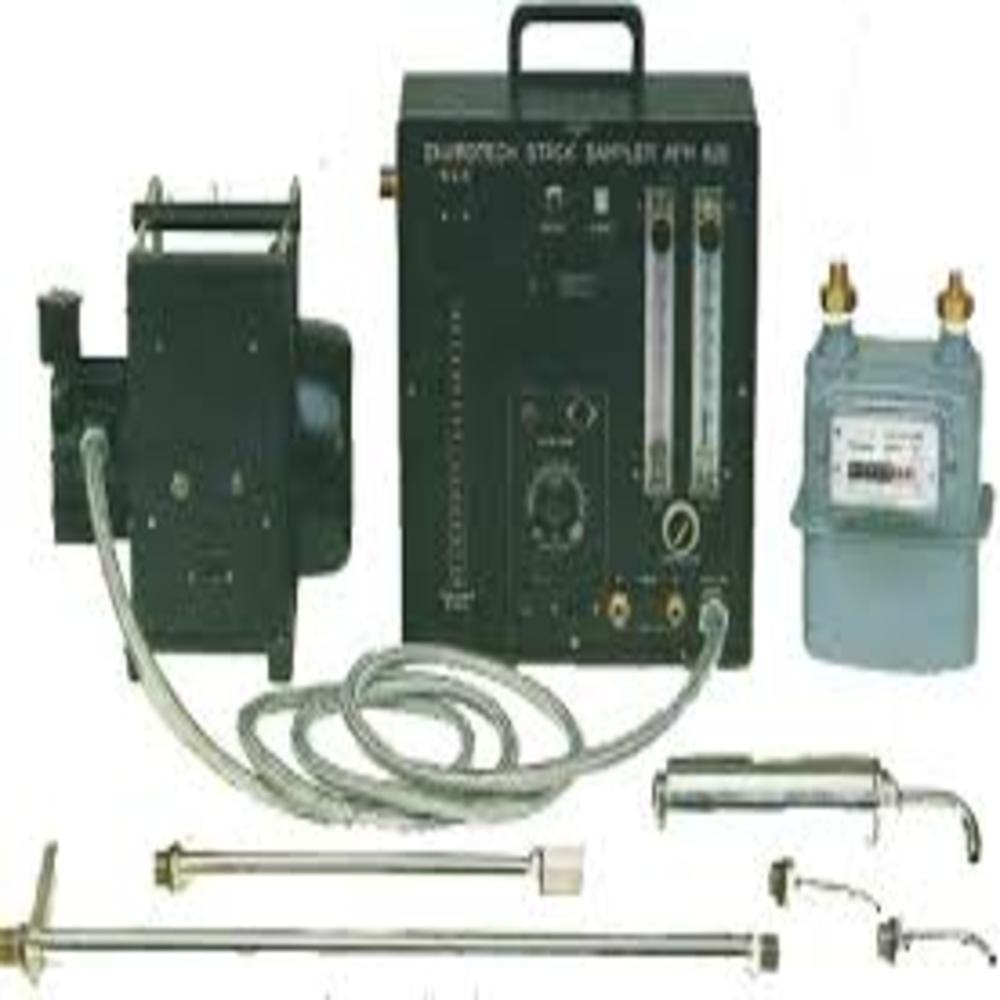

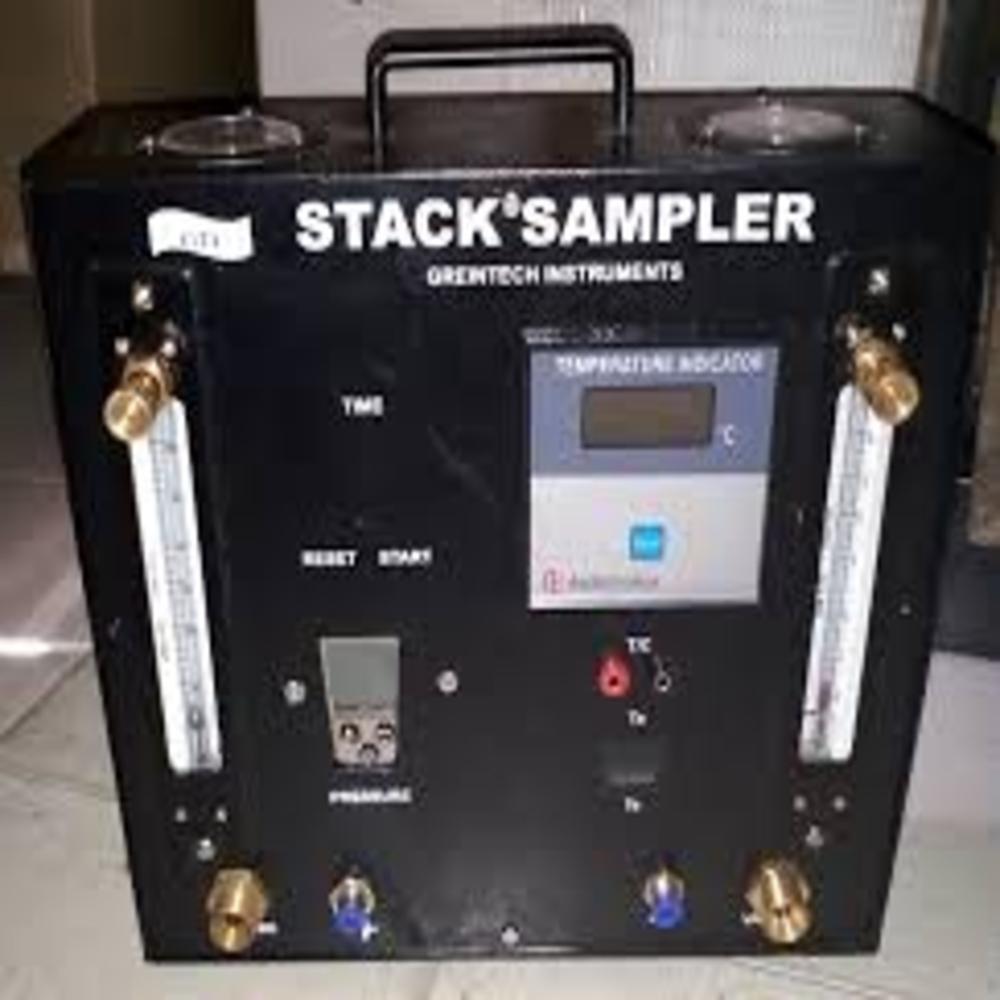

Stack Monitoring Kit GTI-121
We has gained immense accolades in the field of offering Stack Sampler to the clients. Stack Sampler is a basic instrument used for particulate matters (PM) under iso kinetic conditions and gaseous pollutants in flue gas emitted from the stack/chimney. Offered range is designed and manufactured as per the set industry norms using quality approved components with the help of advanced technology.

TECHNICAL SPECIFICATIONS:-

Stack Temperature Range: Ambient to 600 deg C read on a Digital Pyrometer

Stack Velocity Range : 3 to 60 m/sec

Thermocouple :T/C sensor in ss 304 casing, length of insertion : 0.6m with 2 m Long cable

Manometer : Digital with 0 -1200 mm of H20 range
Pilot Tube: Calibrated S-type fabricated-SS 304, 0.6m extendable to 1.2m

Particulate Sampling : 0 to 30 lpm collection on thimble type filter up to 0.3 micron rating

Gaseous Sampling : 0 to3 lpm collection in a set of glass impingers

Rota meter: Plastic Body with 2% FSD accuracy, 0-30 lpm for PM and 0-3 lpm for Gas

Sampling Probe: Made from SS 304 tube, o.6m length extendable to 1.2m

Filter Holder: Fabricated from SS 304 tube suitable to hold either cellulose filtration thimble (size 28mm ID X 100mm long) or glass micro fiber thimble (size 19mm ID X 90mm Long) accommodated in ice tray. Placed on rear side of instrument panel with a Provision to keep ice.

Nozzles : A set of 3 stainless steel nozzles

Digital Clock: 0-60 mi nutes, I second readout with start and stop switches

Sampling Train: I No. of 240 ml cap. & 3 No. of 120 ml cap. Borosilicate glass impingers accommodated in ice tray, placed on the rear side of instrument panel with a Provision to keep ice.

Vacuum Pump : Monoblock Rotary Vane type, oil lubricated, single phase motor (230V) with more the 50 lpm free flow capacity.
